Automatic Duvet Fiber Quilt Filling Machine

Short Description:

Applicable materials: 0.8D-15D high fiber cotton, wool and

cotton (length 10-80mm)elastic latex particles, high elastic broken

sponge particles, feather, cashmere, wool and the mixture involved.

· Applicable products of this machine: Goose down quilts, pillows,

cushions, outdoor sleeping bags and outdoor thermal products.

Send email to us

Product Detail

Product Tags

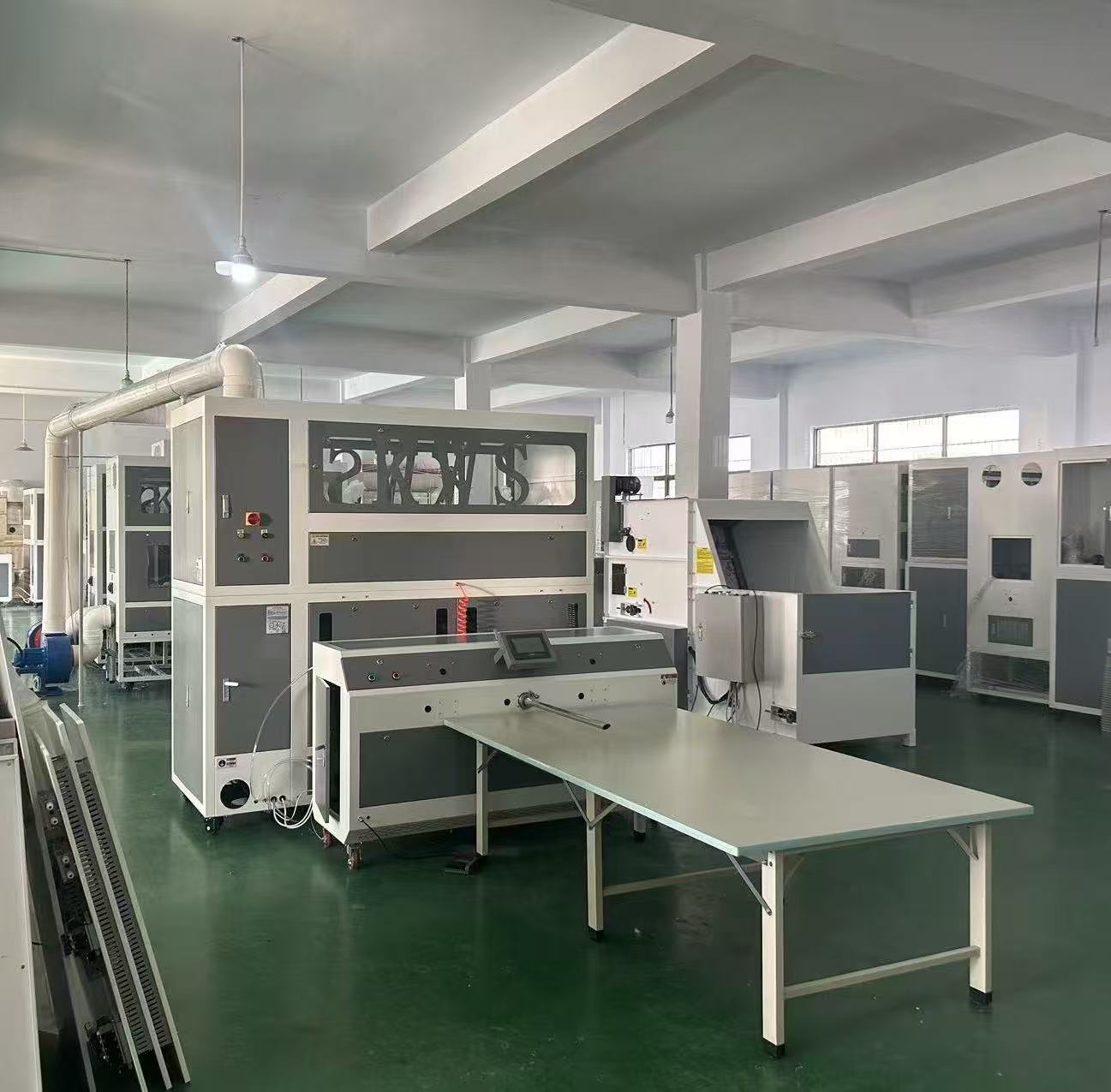

Fully Automatic weighing duvet filling machine

- PRODUCT DISPLAY -

This machine is equipped with filling tubes of different calibers, which can meet a variety of products.The filling requirements. Φ25/32 * L720mm filling port for filling Various styles of quilts, sleeping bags, car cushions and other products.
Φ38mm * L350mm filling port for filling separated pillow core,Products such as pillow, sofa pillow.

·Temperature: Per GBT14272-2011

requirement,filling test temperature is 20±2℃

·Humidity: Per GBT14272-2011, the humidity of filling test is 65±4%RH

·Air volume≥0.9㎥/min.

·Air pressure≥0.6Mpa.

·If the air supply is centralized, the pipe should be within 20m,the diameter of the pipe should not be less than 1 inch. If the air source is far away, the pipe should be bigger accordingly. Otherwise, the air supply is not enough, which will cause filling instability.

·If the air supply is independent, it is recommended to have11kW or more high-pressure air pump(1.0Mpa).

- MACHINE PARAMETERS-

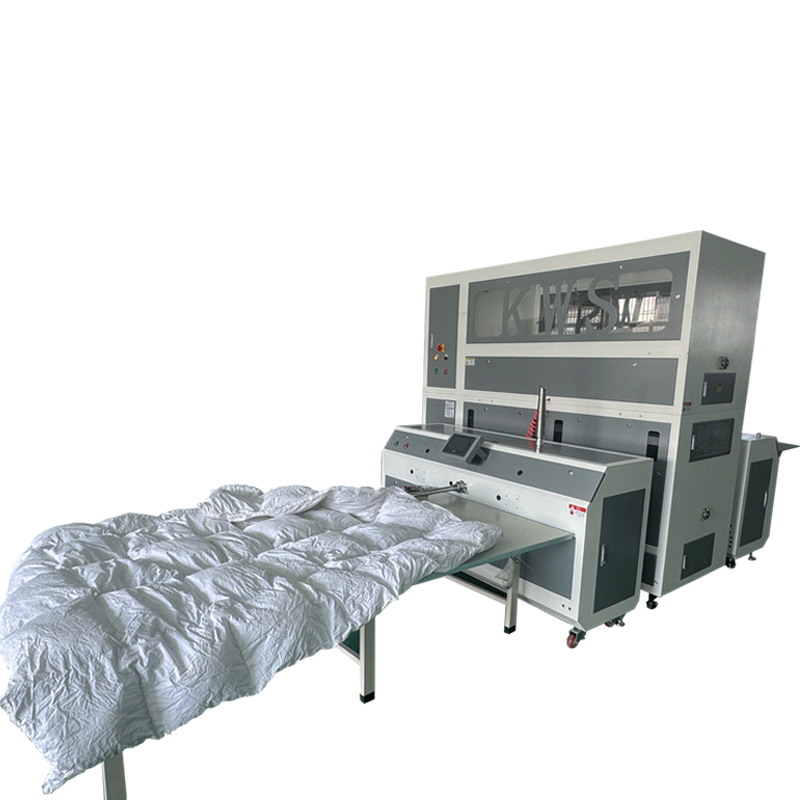

Automatic goose down quilt filling machine KWS688-2C
Overall Dimension： 650023002230mm (15㎡)		Packing size/Gross Weight:6.8CBM/1100KG
Voltage/Power	220V 50HZ/2.8KW	Accuracy Class	Down±0.1g /Fiber ±0.3g
Storage box Size	22759002230mm	Storage Capacity	25-45kg

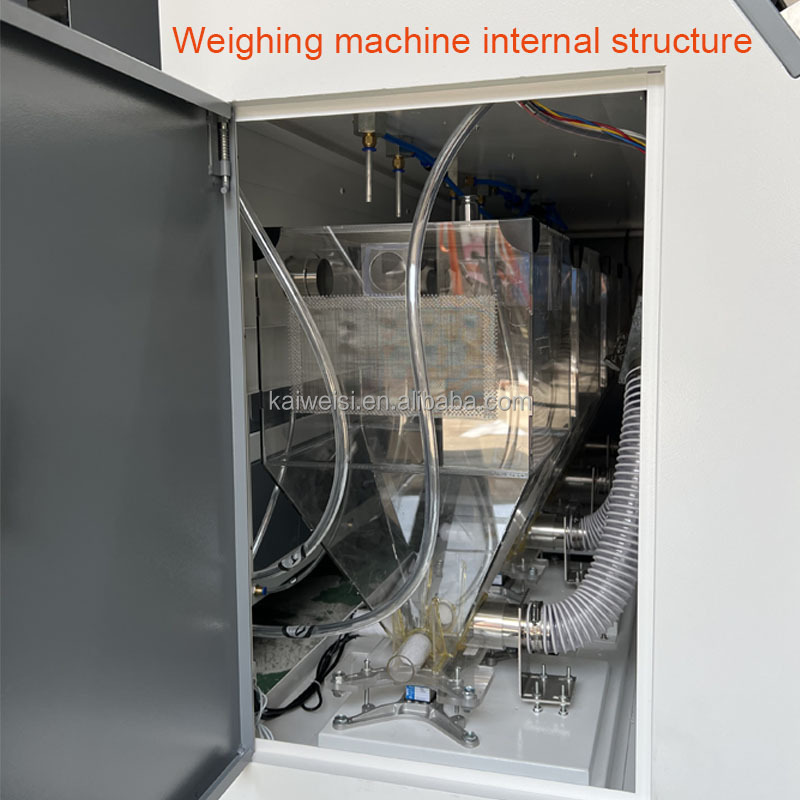

Weighing machine Size/2Sets	18005801000mm	Filling Range	5-90g（Single weighing range）
Dedicated Workbench/2pcs	20001200650mm	Filling Port	Two Heads (8 Scales)
Weight	860kg	Filling Port Size/2sets	Φ25/32mm×Length750mm
Display Interface	10“HD Touch Screen	Filling Speed	20-60PCS/min(fabric piece≤25g)
Auto Feeding System	Including feeding fan	Heavy Duty Allocation Deduction	YES
USB Data Import Function	YES	Air Pressure	0.6-0.8Mpa (Need air compressor≥11kw,not included )

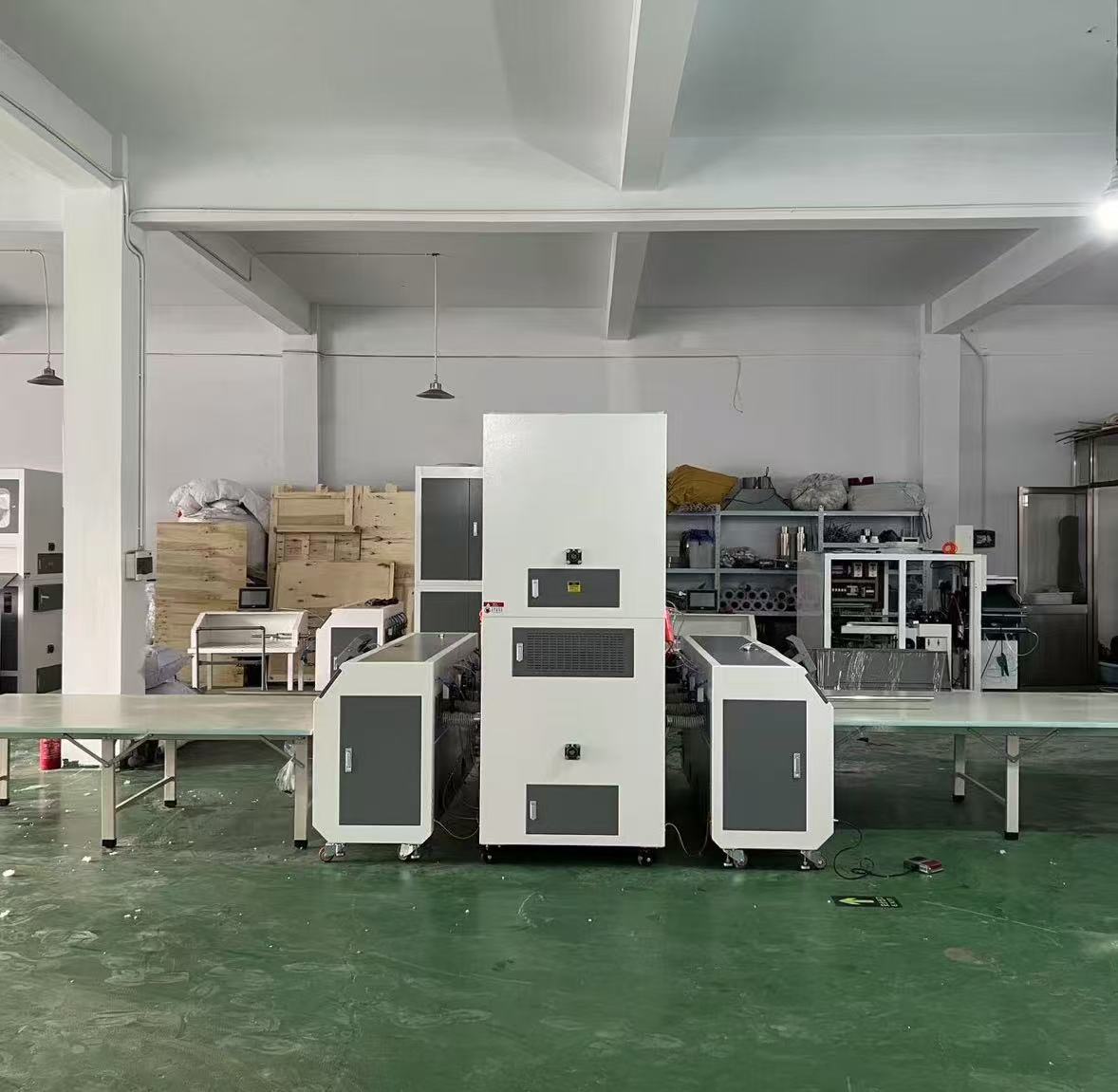

- PRODUCT DETAILS -

- RAW MATERIAL -

• Applicable materials include polyester short fibers of 0.6D-15D and 32-64mm in length, down, feathers, kapok (10-80mm in length), fiber balls, elastic latex particles, foam particles, high-elasticity crushed sponge particles, and their mixtures.

• The storage box is equipped with 5 feeding ports, which can feed 2-5 kinds of raw materials at the same time and mix them effectively. The storage box is equipped with a photoelectric sensing device, which can automatically feed when there is no material.

- PRODUE APPLICATION -

Applicable products of this machine: Goose down quilts, pillows, cushions, outdoor sleeping bags and outdoor thermal products.

- ABOUT US -

• Qingdao Kaiweisi Industry & Trade Co., Ltd. is a manufacturer specializing in home textile equipment. We have a professional R&D engineering team and an independent international trade department that provides installation, pre-sales, and after-sales online services. Our products have obtained ISO9000/CE certification and have won wide acclaim from domestic and foreign customers.
