Wool Opening Machine
Product Introduction

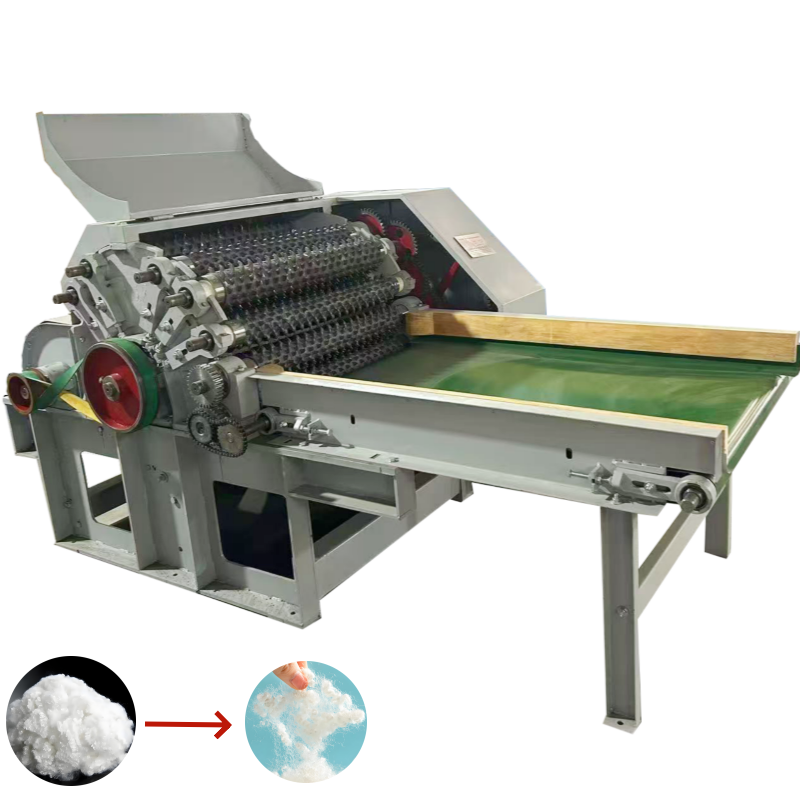

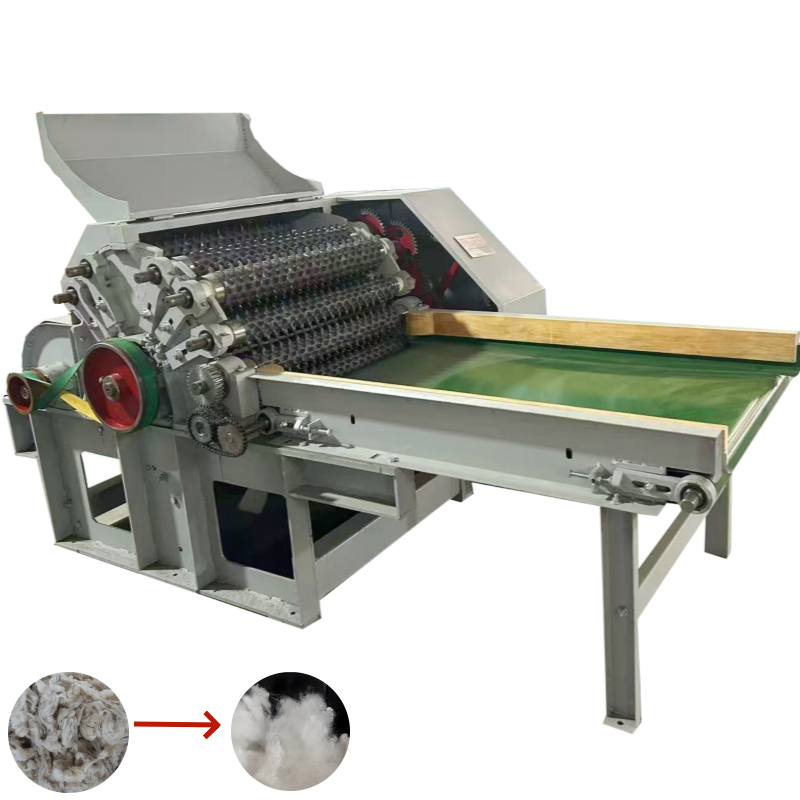

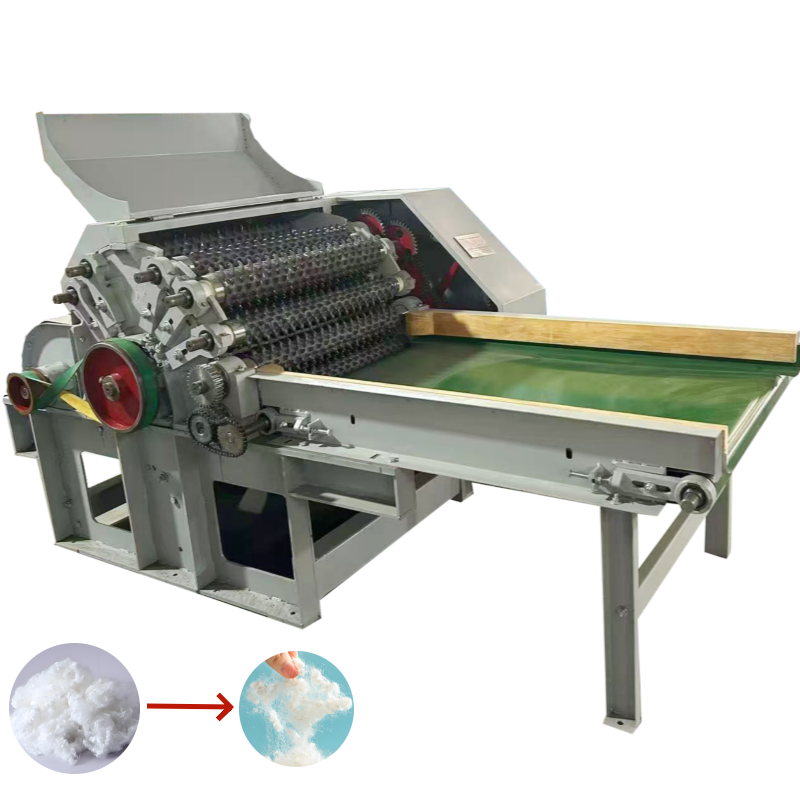

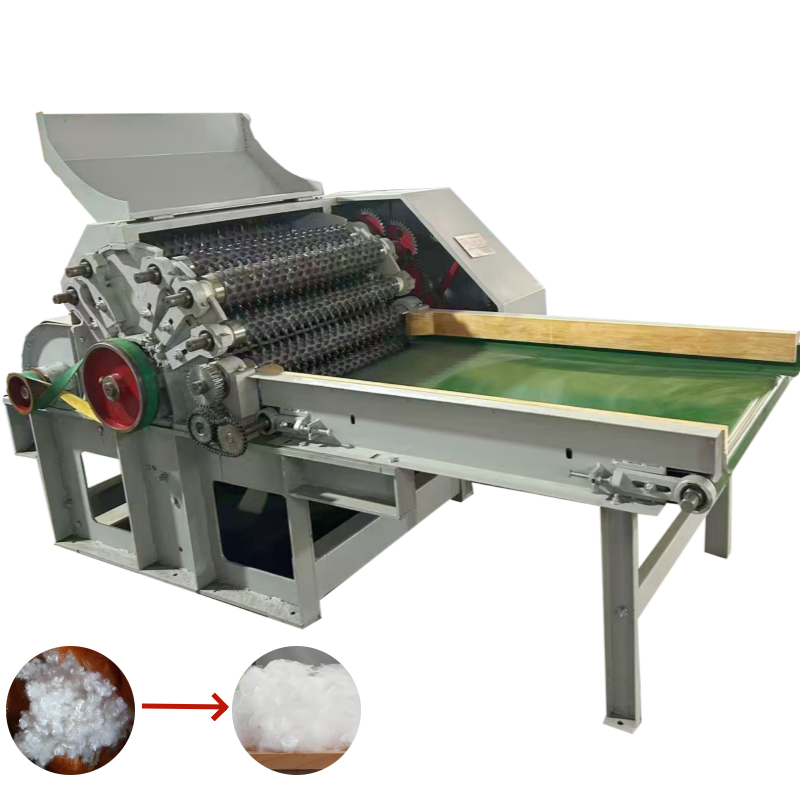

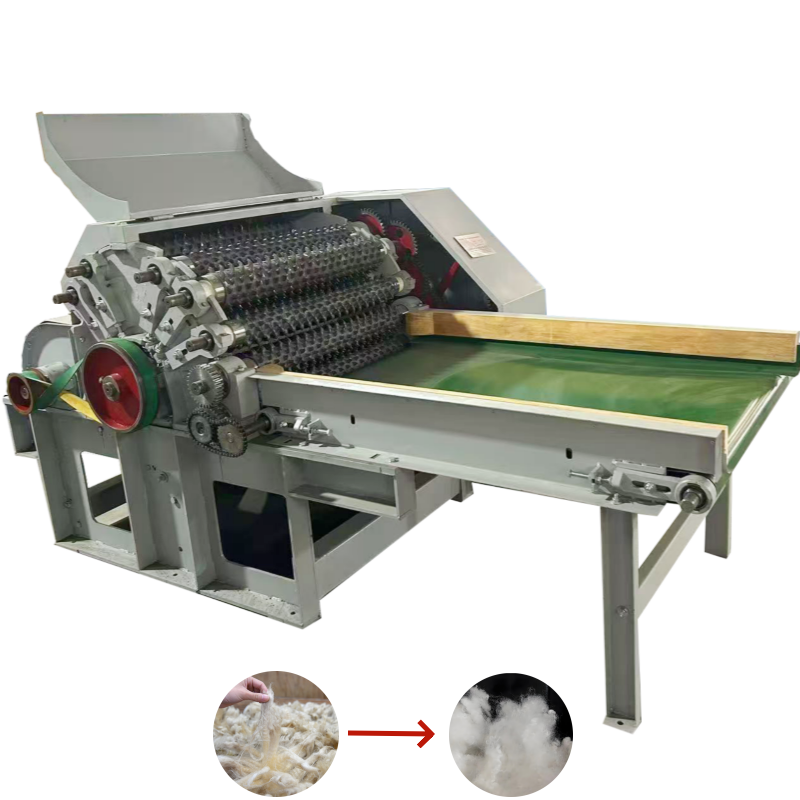

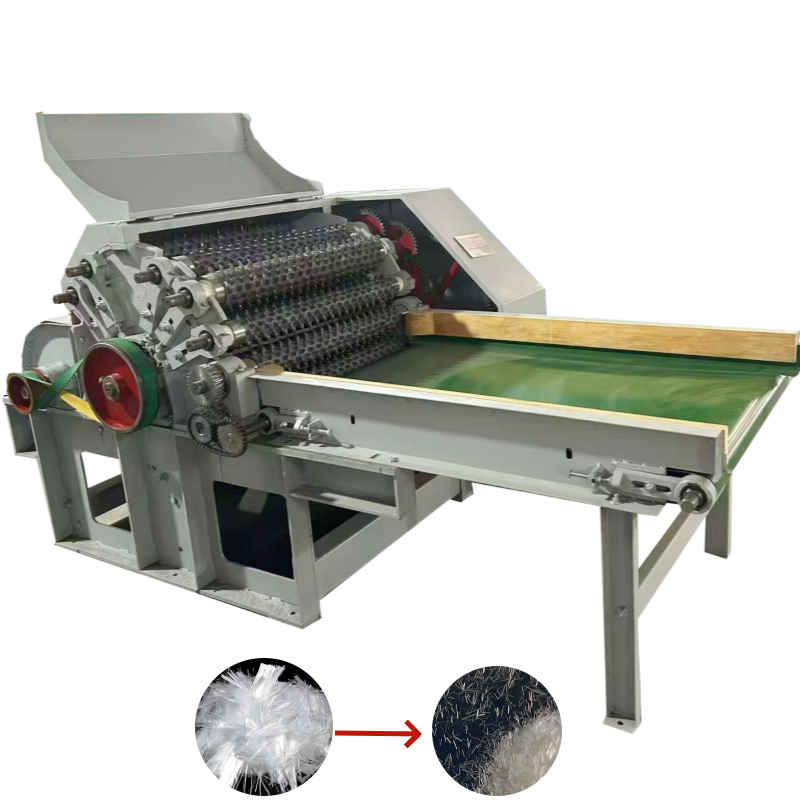

This machine consists of wool feeding, opening and mixing, transmission, frame cover, electrical equipment, etc. It can preliminarily loosen and mix various washed wool or chemical fibers to remove impurities, add appropriate amount of emulsified oil ( wool oil) to make the fibers loose and mixed evenly for the carding and sliver making process.
Specifications
| Car | Left-hand car |
| Machine width | 900mm |
| Dimension | 2.7 * 1.65 M |
| Weight | 2.0t |
| Drag power | Cylinder 8th level 5.5 kW 720 rpm |
| Productivity | 300—500kg／h |
| Feeding roller | φ120mm(With gear) |
| Working roll | φ158mm(With gear) |
| Stripping roller | φ120mm(With gear) |
| Cylinder | φ650mm(With gear) |
| Dofu | φ400mm(With gear) |
| Speed | Cylinder：346R／M Dofu：830R／M Feeding Curtain：268R/M Feeding roller：216R/M Big gear：6.96R/M |
